Aircraft Size Comparison

Choose from 28 published aircraft with source-backed length and wingspan measurements. Dimensions remain scoped to the family or representative variant recorded by the approved data.

Choose aircraft

Aircraft selectors

Aircraft AAircraft B

Same scale · 8 px per meter

Proportional dimension schematic

Schematic dimension bars only; these are not aircraft silhouettes or exact outlines.

F-102 Delta DaggerAircraft family

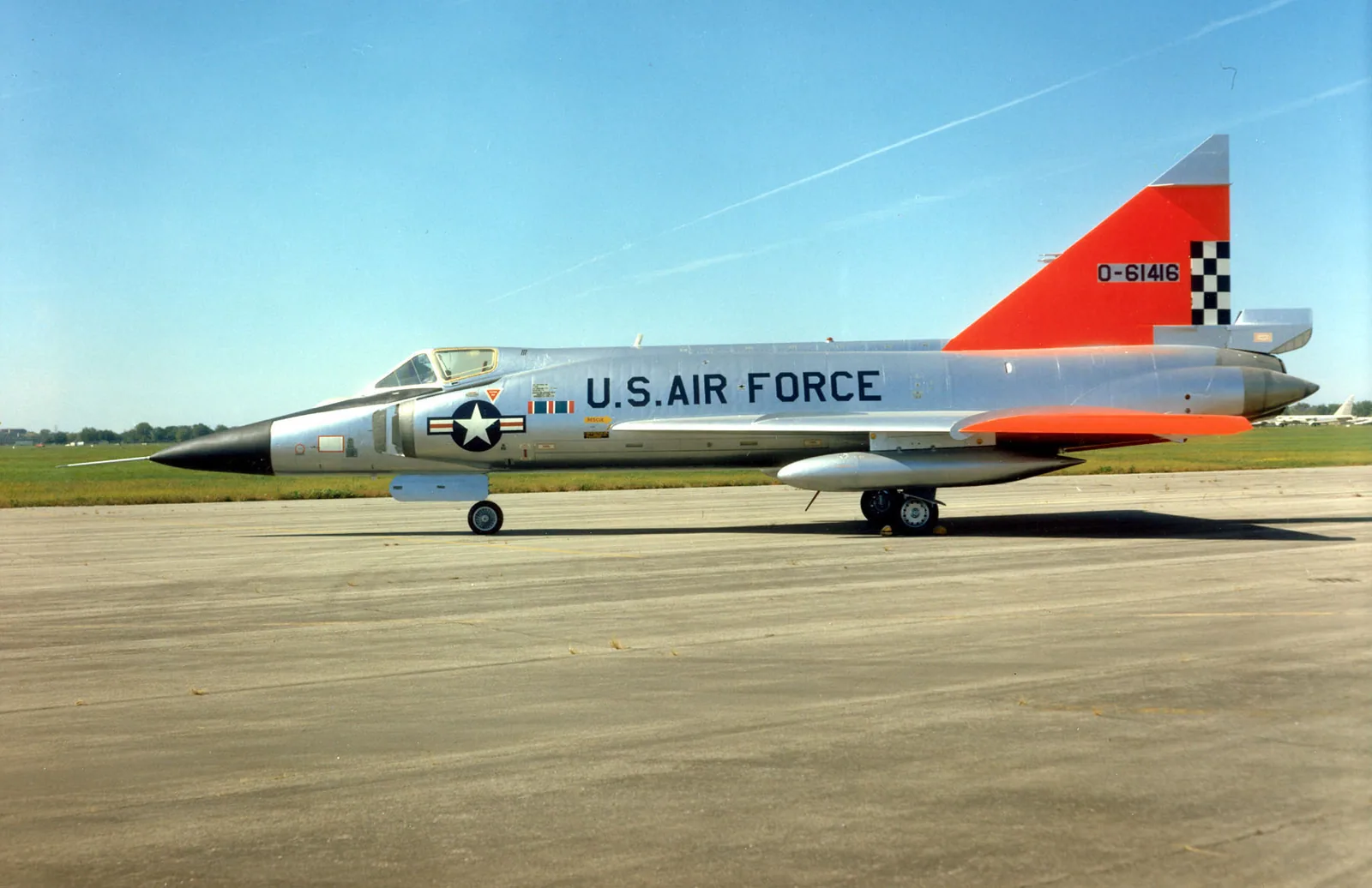

F-102A aircraft. Convair F-102A Delta Dagger museum aircraft. — Convair F-102A Delta Dagger museum aircraft. Source · Not separately identified on the file page; public domain; source credit: National Museum of the United States Air Force. Public domain

Length · 20.828 mWingspan · 11.6078 m

F-106 Delta DartAircraft family

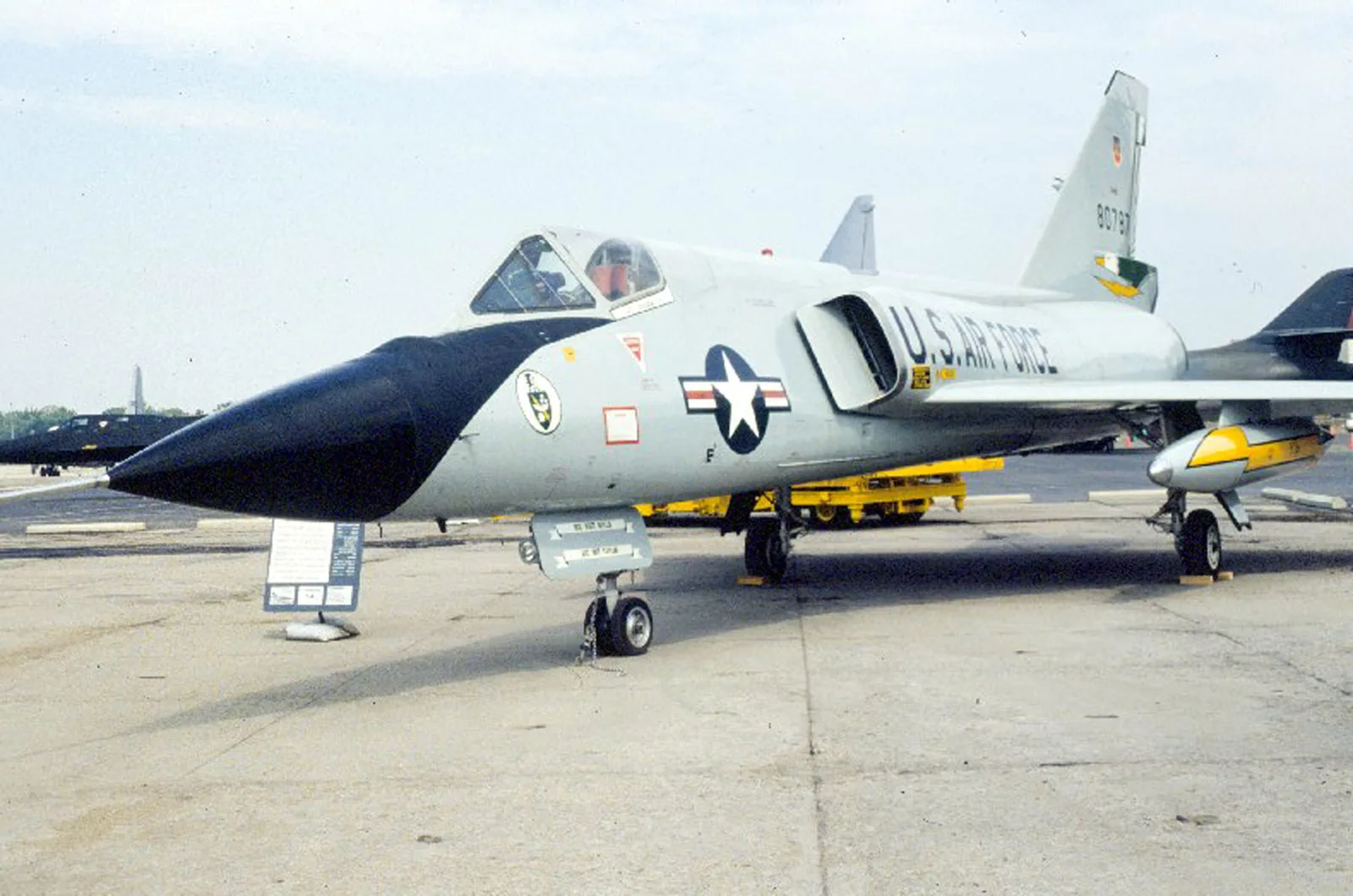

F-106A aircraft. Convair F-106A Delta Dart s/n 58-0787 at the National Museum of the U.S. Air Force. — Convair F-106A Delta Dart s/n 58-0787 at the National Museum of the U.S. Air Force. Source · USAF; public domain; source credit: National Museum of the United States Air Force. Public domain

Length · 21.5646 mWingspan · 11.684 m

Both bars use the same physical scale. Long bars scroll horizontally on narrow screens.

Approved measurements

Dimension Summary

Dimensions for F-102 Delta Dagger and F-106 Delta Dart
Dimension	F-102 Delta DaggerAircraft family	F-106 Delta DartAircraft family	Difference
Length	20.828 m · 68 ft 4 inSource value: 68 ft 4 in · Aircraft family · Convair F-102A Delta Dagger · including boom	21.5646 m · 70 ft 9 inSource value: 70 ft 9 in · Aircraft family · Convair F-106A Delta Dart	Not directly comparable · recorded conditions differ
Wingspan	11.6078 m · 38 ft 1 inSource value: 38 ft 1 in · Aircraft family · Convair F-102A Delta Dagger	11.684 m · 38 ft 4 inSource value: 38 ft 4 in · Aircraft family · Convair F-106A Delta Dart	0.0762 m
Height	6.4516 m · 21 ft 2 inSource value: 21 ft 2 in · Aircraft family · Convair F-102A Delta Dagger	6.1976 m · 20 ft 4 inSource value: 20 ft 4 in · Aircraft family · Convair F-106A Delta Dart	0.254 m
