Lockheed F-94 Starfire

F-94 · Lockheed · United States

Roles
Interceptor (Primary)
Era
Cold War
Status
Retired

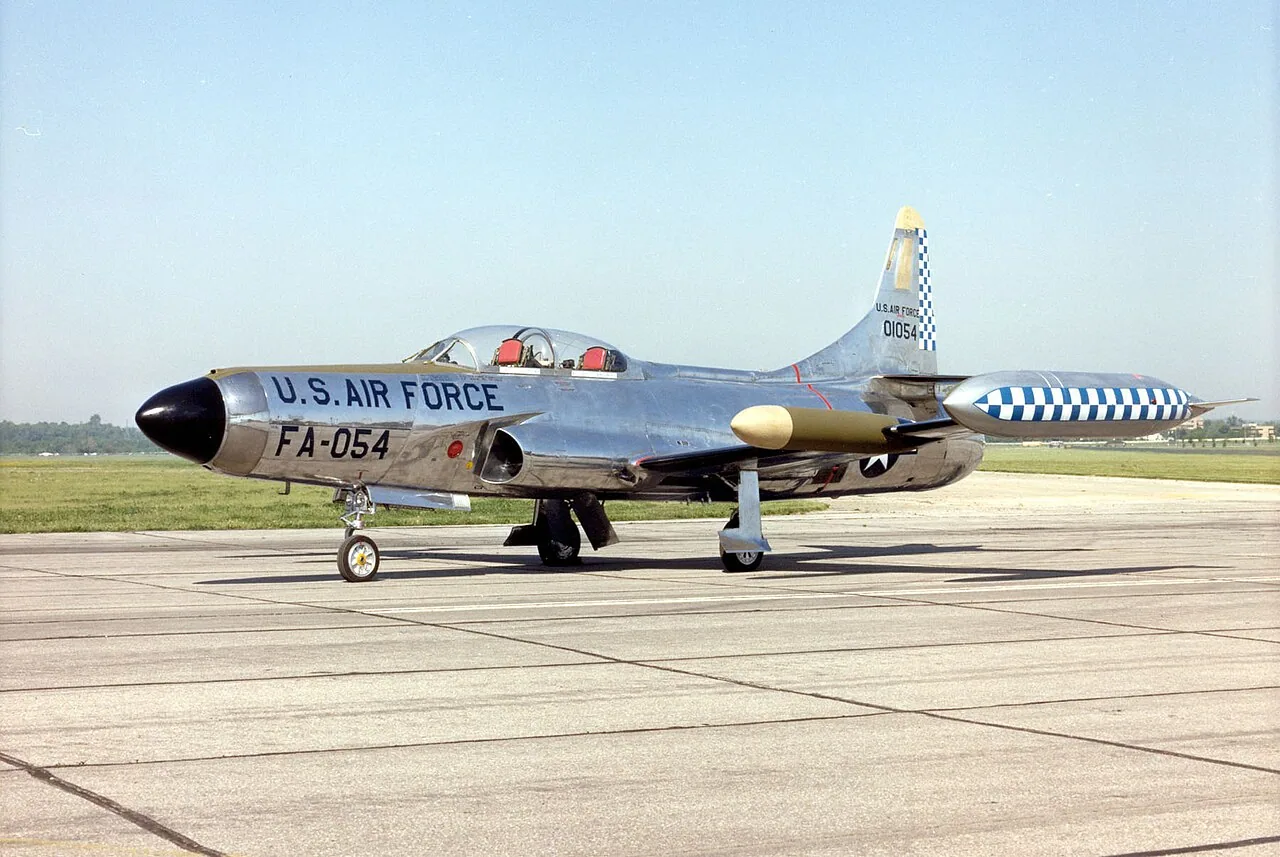

F-94C aircraft. Lockheed F-94C Starfire at the National Museum of the U.S. Air Force.
Lockheed F-94C Starfire at the National Museum of the U.S. Air Force. Source · USAF; public domain; source credit: National Museum of the United States Air Force. Public domain

Reference data

Quick facts

First flight
1949
Manufacturer
Lockheed
Country
United States
Status
Retired

Reference data

Historical Content

Development and History

Aircraft family

The Lockheed F-94 Starfire was developed from the earlier P-80 Shooting Star as an all-weather jet interceptor. [1]

Aircraft family

The first F-94 prototype flew on July 1, 1949. The Starfire was subsequently produced in F-94A, F-94B and F-94C versions. [1]

Air Defense Role

Aircraft family

The F-94 was developed to intercept approaching aircraft in conditions where conventional day fighters were less effective. [1]

Variant: F-94A

The F-94A became Air Defense Command's first all-jet, all-weather interceptor. [1]

F-94C Development

Variant: F-94C

The F-94C represented a substantial redesign of the earlier Starfire. It introduced changes to the wings, engine, navigation and fire-control equipment. [1]

Variant: F-94C

Unlike earlier versions, the F-94C carried rockets rather than guns. Its rocket armament was housed in the nose, with additional wing-mounted pods available on some aircraft. [1]

Variant: F-94C

The last F-94Cs left USAF service in 1959. [1]

Reference data

Specifications

Representative Variant Specifications

Representative variant

F-94C

These specifications apply to the F-94C variant and should not be read as values for every F-94 Starfire version.

Dimensions

MeasurementValue
Length13.56 m44 ft 6 in
Wingspan11.38 m37 ft 4 in
Height4.55 m14 ft 11 in

Performance

MeasurementValue
Maximum speed1,030 km/h640 mph
Cruise speed766 km/h476 mph
Range2,052 km1,275 mi
Ceiling15,788.6 m51,800 ft

Powerplant

turbojet · F-94C

Pratt & Whitney J48-P-5/-5A

Quantity: 1

Thrust39 kN8,750 lbfwith afterburner

Reference data

Variants

Recorded variants of this aircraft family. Variant entries here do not create separate public pages.

F-94A
F-94A
F-94B
F-94B
F-94C
F-94C
Representative variant

Reference data

Sources

  1. Lockheed F-94C StarfireNational Museum of the United States Air ForceF-94C representative variant specifications · Development and History · Aircraft family · Air Defense Role · Aircraft family · Air Defense Role · Variant: F-94A · F-94C Development · Variant: F-94C
