Aircraft record

Republic F-105 Thunderchief

F-105 · Republic Aviation · United States

Roles
Fighter (Primary)Attack
Era
Cold War
Status
Retired

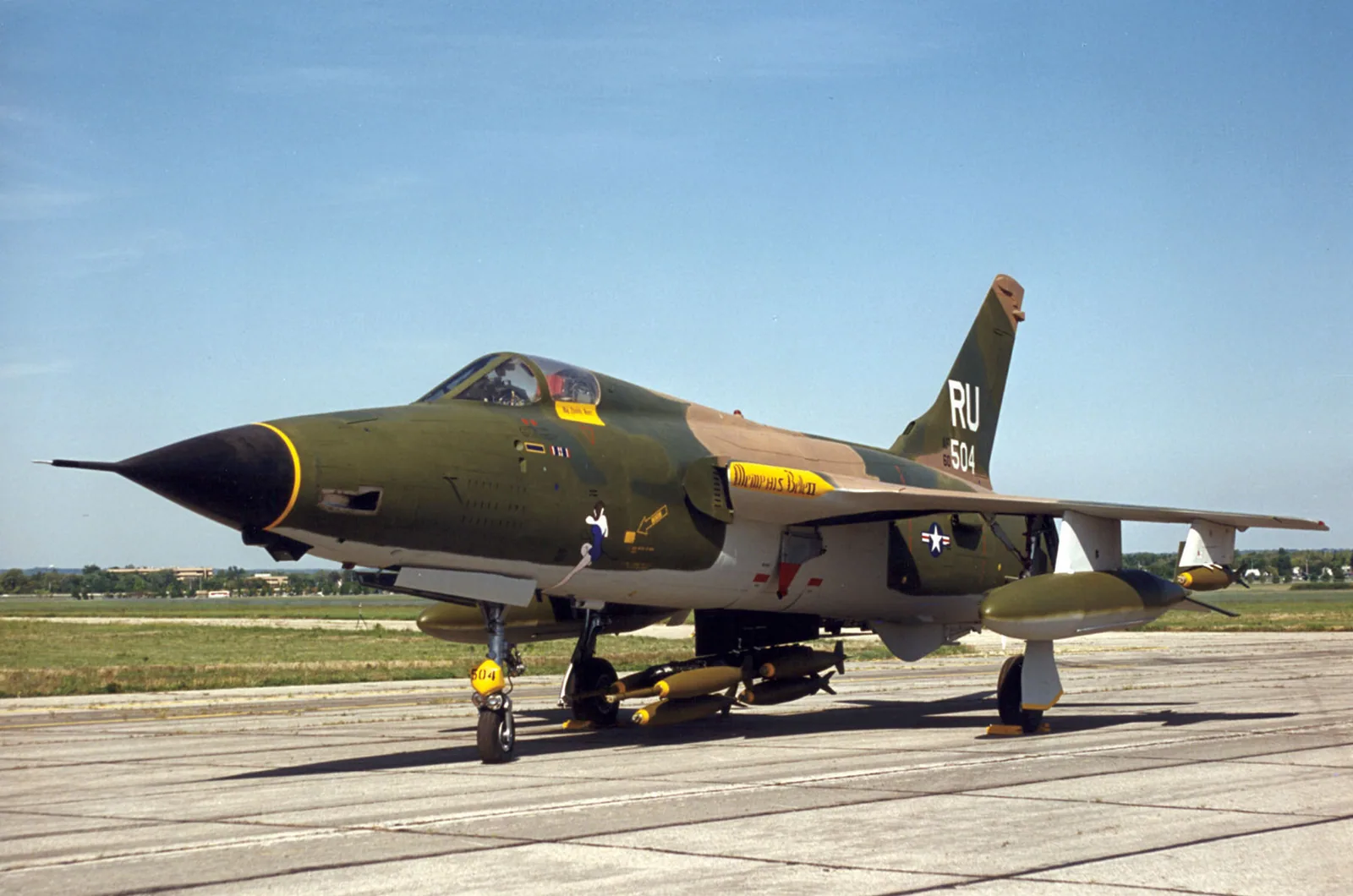

F-105D aircraft. Republic F-105D Thunderchief museum aircraft.
Republic F-105D Thunderchief museum aircraft. Source · Not separately identified on the file page; public domain; source credit: National Museum of the United States Air Force. Public domain

Reference data

Quick facts

First flight
1955
Manufacturer
Republic Aviation
Country
United States
Status
Retired

Reference data

Historical Content

Development and History

Aircraft family

The Republic F-105 Thunderchief originated from a project begun in 1951 to develop a supersonic tactical fighter-bomber as a successor to the F-84F. [1]

Aircraft family

The prototype YF-105A first flew in October 1955. The aircraft later became widely known by the nickname Thud and developed into one of the principal American tactical strike aircraft of the Vietnam War. [1]

Design and Strike Capability

Aircraft family

Although originally designed for a nuclear strike mission, the F-105 was also capable of carrying substantial conventional weapons loads. [1]

Aircraft family

Its combination of supersonic performance and heavy ordnance capacity made it suitable for demanding tactical strike operations. [1]

Operational History

Aircraft family

The F-105 saw extensive combat service during the Vietnam War. The United States Air Force employed F-105D aircraft during the Rolling Thunder air campaign against North Vietnam. [1]

Aircraft family

Thunderchiefs performed difficult bombing missions against heavily defended targets. The type was gradually replaced in its principal strike role by the F-4 Phantom. [1]

Wild Weasel Variants

Variant: F-105F and F-105G

Two-seat F-105 variants were adapted for the Wild Weasel mission, which involved detecting and attacking enemy surface-to-air missile defenses. [2]

Variant: F-105G

The F-105G represented an improved Wild Weasel configuration with specialized electronic countermeasure equipment. [2]

Variant: F-105F and F-105G

These capabilities must be attributed to the appropriate two-seat variants, not automatically to all F-105 aircraft. [2]

Reference data

Specifications

Representative Variant Specifications

Representative variant

F-105D

These specifications apply to the F-105D variant and should not be read as values for every F-105 Thunderchief version.

Dimensions

MeasurementValue
Length19.63 m64 ft 5 in
Wingspan10.64 m34 ft 11 in
Height5.99 m19 ft 8 in

Performance

MeasurementValue
Maximum speed2,237 km/h1,390 mph
Cruise speed1,252 km/h778 mph
Range3,550 km2,206 mi
Ceiling15,544.8 m51,000 ft

Powerplant

turbojet · F-105D

Pratt & Whitney J75-P-19W

Quantity: 1

Thrust109 kN24,500 lbf

Reference data

Variants

Recorded variants of this aircraft family. Variant entries here do not create separate public pages.

YF-105A
YF-105A
F-105B
F-105B
F-105D
F-105D
Representative variant
F-105F
F-105F
F-105G
F-105G

Reference data

Sources

  1. Republic F-105D ThunderchiefNational Museum of the United States Air ForceF-105D representative variant specifications
  2. Republic F-105D ThunderchiefNational Museum of the United States Air ForceDevelopment and History · Aircraft family · Design and Strike Capability · Aircraft family · Operational History · Aircraft family
  3. Republic F-105G ThunderchiefNational Museum of the United States Air ForceWild Weasel Variants · Variant: F-105F and F-105G · Wild Weasel Variants · Variant: F-105G
